Product Details:
|
|
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | NL |
| Certification: | HG/T2184 |
| Model Number: | JY06 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 200 Meter/Meters |
| Price: | $2.90 - $15.00 / Meter |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Meters) 1 - 200 Est. Time(days) 10 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 Meter/Meters per Week |
|
Detail Information |
|||
| Temp. Range: | -40℃~+ 120℃ | Material: | EPDM |
|---|---|---|---|

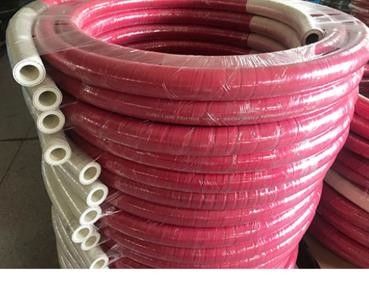

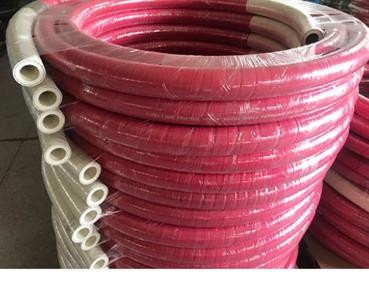

| Size: | 1/2"~3" | Length: | 100m/60/40 Per Roll |
| High Light: | 60m/Roll Epdm Flexible Hose,60m/Roll epdm hose pipe |
||

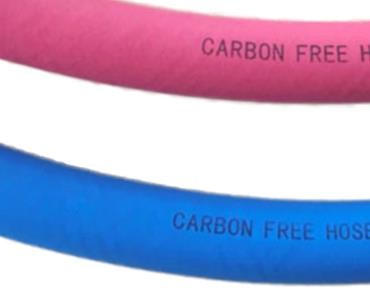

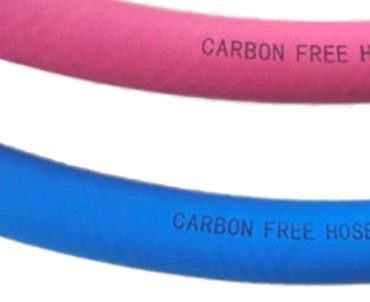

Product Description
Type JY06
Water cooling system hose for conveying purified water of the internal reduction electric furnace with a voltage of 6 KV
Applications:
it is suitable for conveying purified water through cable in induction electric furnace water cooling system with voltage 6KV. High insulation, wear-resisting and anti-aging.

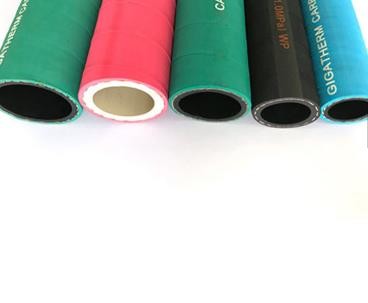

Construction:
Tube: black smooth high insulation EPDM synthetic rubber.
Reinforcement: high strength polyester fiber.
Cover: green or black, high insulation EPDM synthetic rubber. Smooth for ID≤1", fabric impression for ID>1”.
Electrical resistance: high insulation, excellent low leakage current. The leakage current was less than 20 Micro Amp at 6KV DC/AC voltage.
Temperature range: -40 °C +120 °C
Environmental standards: EU pahs-2, REACH, ROHS directive.
Technical standard: HG/T2184
| Part no. | ID | OD | Bending radius | Work pressure | Bursting pressure | Weight | Length | |
| inch | mm | mm | mm | PSI | PSI | kg/m | m | |
| JY06013 | 1/2" | 12.7 | 21 | 100 | 200 | 800 | 0.31 | 100 |
| JY06016 | 5/8" | 15.9 | 24 | 120 | 200 | 800 | 0.35 | 60 |
| JY06019 | 3/4" | 19.0 | 28 | 150 | 200 | 800 | 0.46 | 60 |
| JY06022 | 7/8" | 22.2 | 32.2 | 170 | 200 | 800 | 0.58 | 60 |
| JY06025 | 1" | 25.4 | 36.8 | 200 | 200 | 800 | 0.76 | 60 |
| JY06032 | 1-1/4" | 31.8 | 44.6 | 250 | 200 | 800 | 1.1 | 40 |
| JY06038 | 1-1/2" | 38.1 | 52 | 300 | 200 | 800 | 1.38 | 40 |
| JY06042 | 42mm | 42.0 | 56 | 336 | 200 | 800 | 1.46 | 40 |
| JY06045 | 45mm | 44.5 | 59 | 360 | 200 | 800 | 1.6 | 40 |
| JY06050 | 2" | 50.8 | 66 | 400 | 200 | 800 | 1.9 | 40 |
| JY06063 | 2-1/2" | 63.5 | 79.5 | 500 | 200 | 800 | 2.5 | 40 |
| JY06076 | 3" | 76.2 | 92.2 | 600 | 150 | 800 | 3.2 | 40 |
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factories in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
