Product Details:
|
|
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | NL |
| Certification: | FDA |
| Model Number: | FSC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100 Meter/Meters (Min. Order) |
| Price: | $5.00 - $45.00 / Meter |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Meters) 1 - 100 Est. Time(days) 10 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 Meter/Meters per Week |
|
Detail Information |
|||
| Size: | 3/8"~3" | Length: | 40m, 60m And 100m/roll |
|---|---|---|---|
| Thickness: | 3.75~9.0mm | Material: | NBR |
| Temp. Range: | -30°C~120°C | Processing Service: | Moulding, Cutting |
| Color: | Blue | ||
| High Light: | 9.0mm Thick 1.5 Inch Suction Hose',9.0mm Thick Flexible Hot Water Hose Pipe,OD51mm 1.5 Inch Suction Hose |
||
Product Description

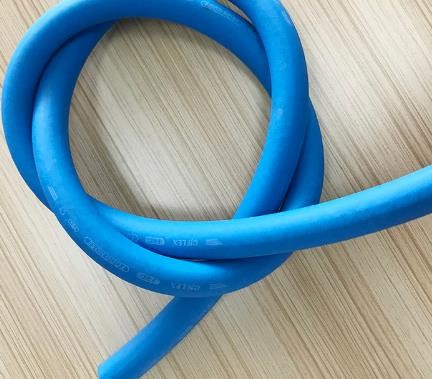

Food grade Steam Hot Water & Food Hose
Applications:
For hot water washing in food processing plants. Also for transfer of hot liquid foodstuffs. ID 9.5 to 25.4mm, suitable for reel mounted applications.

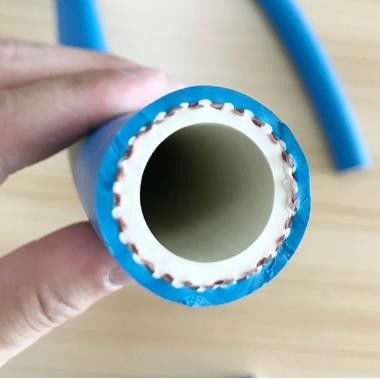

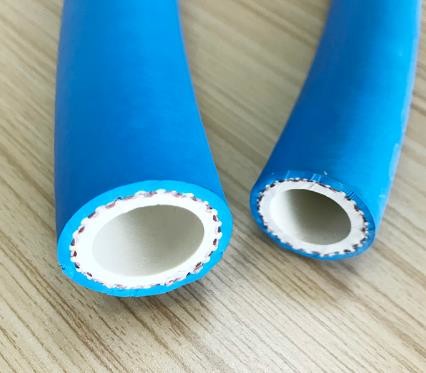

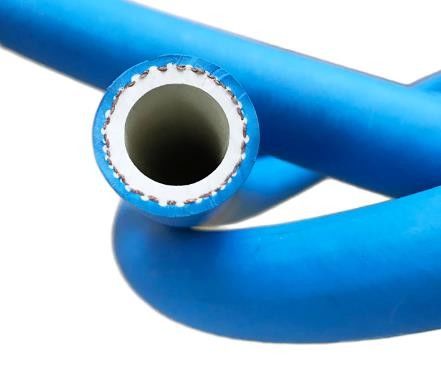

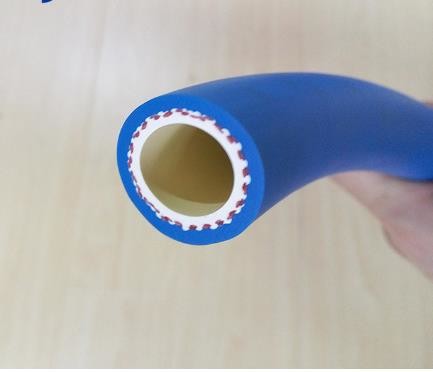

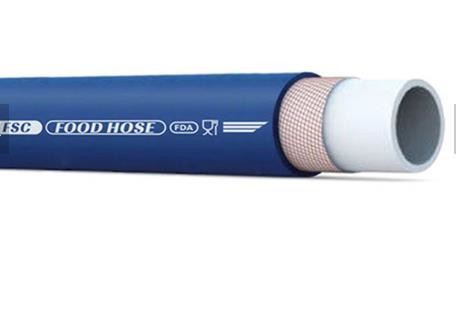

Construction:
Tube: White NBR, oil resistant, smooth.
Reinforcement: Synthetic textile.
Cover: Blue CSM, oil and weather resistant, smooth for ID 9.5 to 25.4 mm, fabric impression for ID 32 to 76mm.
Temperature range: –30°C~+120°C
Standard/Approval: FDA 21 CFR 177.2600.
| Part no. | ID | OD | Bending radius | Work pressure | Bursting pressure | Length | |
| inch | mm | mm | mm | bar | bar | m | |
| FSC010 | 3/8" | 9.5 | 17 | 55 | 20 | 60 | 100 |
| FSC013 | 1/2" | 12.7 | 22.0 | 65 | 20 | 60 | 100 |
| FSC016 | 5/8" | 15.9 | 25.0 | 85 | 20 | 60 | 60 |
| FSC019 | 3/4" | 19.0 | 30.0 | 100 | 20 | 60 | 60 |
| FSC025 | 1" | 25.4 | 37.0 | 125 | 20 | 60 | 60 |
| FSC032 | 1-1/4" | 32.0 | 44 | 250 | 10 | 40 | 40 |
| FSC038 | 1-1/2" | 38.0 | 51 | 300 | 10 | 40 | 40 |
| FSC051 | 2" | 50.8 | 66 | 400 | 10 | 40 | 40 |
| FSC064 | 2-1/2" | 63.5 | 80 | 500 | 10 | 40 | 40 |
| FSC076 | 3" | 76.0 | 94 | 600 | 10 | 40 | 40 |
Packaging & Shipping
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
