Product Details:
|
|
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | NL |
| Certification: | FDA |
| Model Number: | TSS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50 Meter/Meters (Min. Order) |
| Price: | $3.70 - $26.70 / Meter |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Meters) 1 -100 Est. Time(days) 15 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5000 Meter/Meters per Week |
|
Detail Information |
|||
| Material: | PTFE | Size: | 1/8"~1" |
|---|---|---|---|
| Length: | 20~200m/roll | Thickness: | 0.75~1.05mm |
| Processing Service: | E: Cutting, Assembly | Temp. Range: | -70℃~ 260℃ |
| High Light: | 200m/Roll Ptfe Stainless Steel Braided Hose,200m/Roll ss braided hose,1.05mm Ptfe Stainless Steel Braided Hose |
||
Product Description

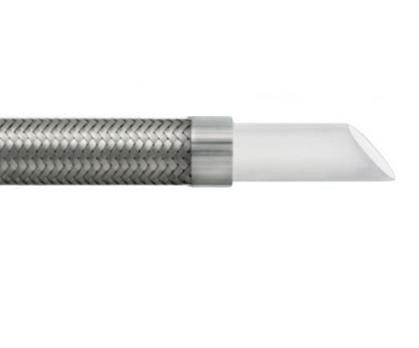

Stainless Steel Braid Cover Smooth PTFE Tube
Construction:
Type TSS is manufactured from smooth PTFE tube with stainless steel over braid.
Temp. Range: -70℃~260℃.
Applications:
For transporting corrosive chemicals, hot air, hot oil, steam and so on where a closed Bending radius is not required. Not recommended for steam-cold water cycling.
Virgin and anti-static liners are available.
Certification: FDA.
We also can provide Type PSS (PFA tube).
| Part no. | ID | OD | Tube Wall thickness | Bending radius |
Work pressure | Bursting pressure | |
| in. | mm | mm | mm | mm | bar | bar | |
| TSS003 | 1/8" | 3.2 | 6.2 | 1.00 | 60 | 250 | 750 |
| TSS005 | 3/16" | 4.8 | 7.7 | 0.75 | 60 | 200 | 600 |
| TSS006 | 1/4" | 6.4 | 9.2 | 0.65 | 75 | 185 | 555 |
| TSS008 | 5/16" | 7.9 | 11.2 | 0.75 | 100 | 180 | 540 |
| TSS010 | 3/8" | 9.5 | 12.4 | 0.75 | 125 | 170 | 510 |
| TSS013 | 1/2" | 12.7 | 15.9 | 0.75 | 140 | 130 | 390 |
| TSS016 | 5/8" | 15.9 | 19.3 | 0.90 | 160 | 100 | 300 |
| TSS019 | 3/4" | 19 | 22.8 | 0.90 | 200 | 75 | 225 |
| TSS022 | 7/8" | 22 | 26.0 | 1.00 | 300 | 65 | 195 |
| TSS025 | 1" | 25.4 | 29.5 | 1.05 | 400 | 65 | 195 |
Packaging & Shipping
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
