Product Details:
|
|
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | NL |
| Certification: | FDA |
| Model Number: | TCWS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50 Meter/Meters (Min. Order) |
| Price: | $22.50 - $99.50 / Meter |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Delivery Time: | Quantity(Meters) 1 -20 Est. Time(days) 15 |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Meter/Meters per Week |
|
Detail Information |
|||
| Material: | PTFE | Size: | 3/8"~2" |
|---|---|---|---|
| Length: | 20~200m/roll | Thickness: | 0.75~1.10mm |
| Processing Service: | Cutting, Assembly | Temp. Range: | -70℃~ 260℃ |
| High Light: | 20m/roll Lined Hose,20m/roll 2 inch braided hose,2 inch stainless steel braided hose |
||
Product Description

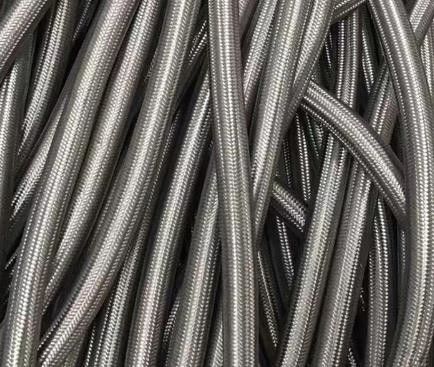

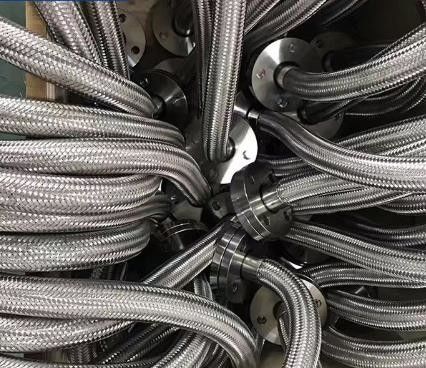

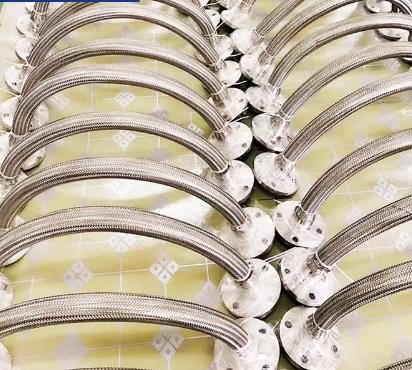

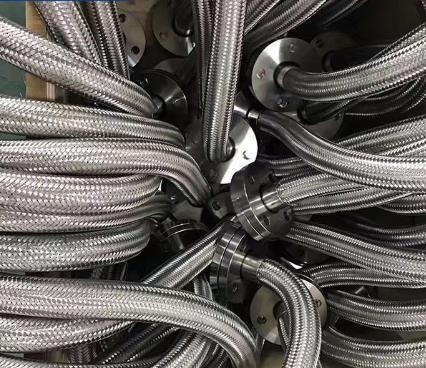

Stainless Steel Braid Cover Stainless Steel Helix Reinforced Convoluted PTFE Tube

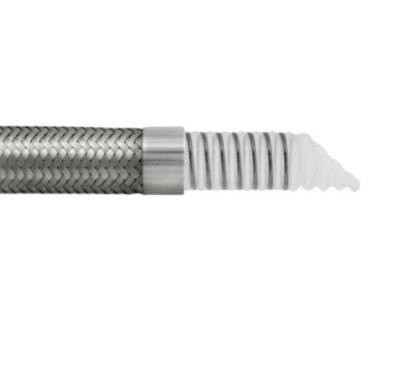

Construction: A low profile (shallow), heavy walled, convoluted PTFE hose, with external stainless steel vacuum spiral and 304 stainless steel over braid as standard.
Temp. Range: -70°C~+260°C.
Applications: It should be specified for steam applications or when high vacuum hose applications are required. Generally excellent mechanical strength.
Certification: FDA.
| Part no. | ID | Mini OD | Tube Wall thickness | Bending radius |
Work pressure | Bursting pressure | |
| in. | mm | mm | mm | mm | bar | bar | |
| TCWS010 | 3/8" | 9.5 | 16.7 | 0.75 | 25 | 110 | 440 |
| TCWS013 | 1/2" | 12.7 | 19.7 | 0.75 | 35 | 100 | 400 |
| TCWS016 | 5/8" | 15.9 | 23.5 | 0.75 | 45 | 85 | 340 |
| TCWS019 | 3/4" | 19 | 27 | 0.90 | 50 | 80 | 320 |
| TCWS025 | 1" | 25.4 | 33 | 1.00 | 70 | 60 | 240 |
| TCWS032 | 1-1/4" | 32 | 43.7 | 1.00 | 85 | 45 | 180 |
| TCWS038 | 1-1/2" | 38 | 49 | 1.00 | 110 | 35 | 140 |
| TCWS051 | 2" | 50.8 | 62.5 | 1.10 | 140 | 25 | 100 |
Packaging & Shipping
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
